Prime

The Prime is designed and developed for enthusiasts who dream of building their own 6 degrees of freedom motion simulator. WARNING the simulator is sold without peripherals or computer. Expect to pay between 4,000€ and 5,000€ if you need to equip yourself completely. I can advise you and, if necessary, buy it for you.

Starting at

€11,200.00

See kits↓

Contact us→

Product may appear different from these images due to upgrades

DIY

Get all the parts, step by step videos and lego-like manual to build your own 6DOF simulator. Around 5 days of work.

Starting at

€11,200.00excl. tax
& shipping *

Configure→

Assembly

Price

Contents

Options

Silver, Black, Belt Tensioner, Wind Simulator, Pedal reinforcement plate, CNC Platform, Spare Motion4Sim Controller, Spare Full Actuator DIY (with motor), Thrustmaster AVA Base bracket right, Thrustmaster AVA Base bracket center, Thrustmaster Warthog base bracket right, Thrustmaster Warthog base bracket center, Thrustmaster Warthog Throttle bracket left, PRO license (contact us)

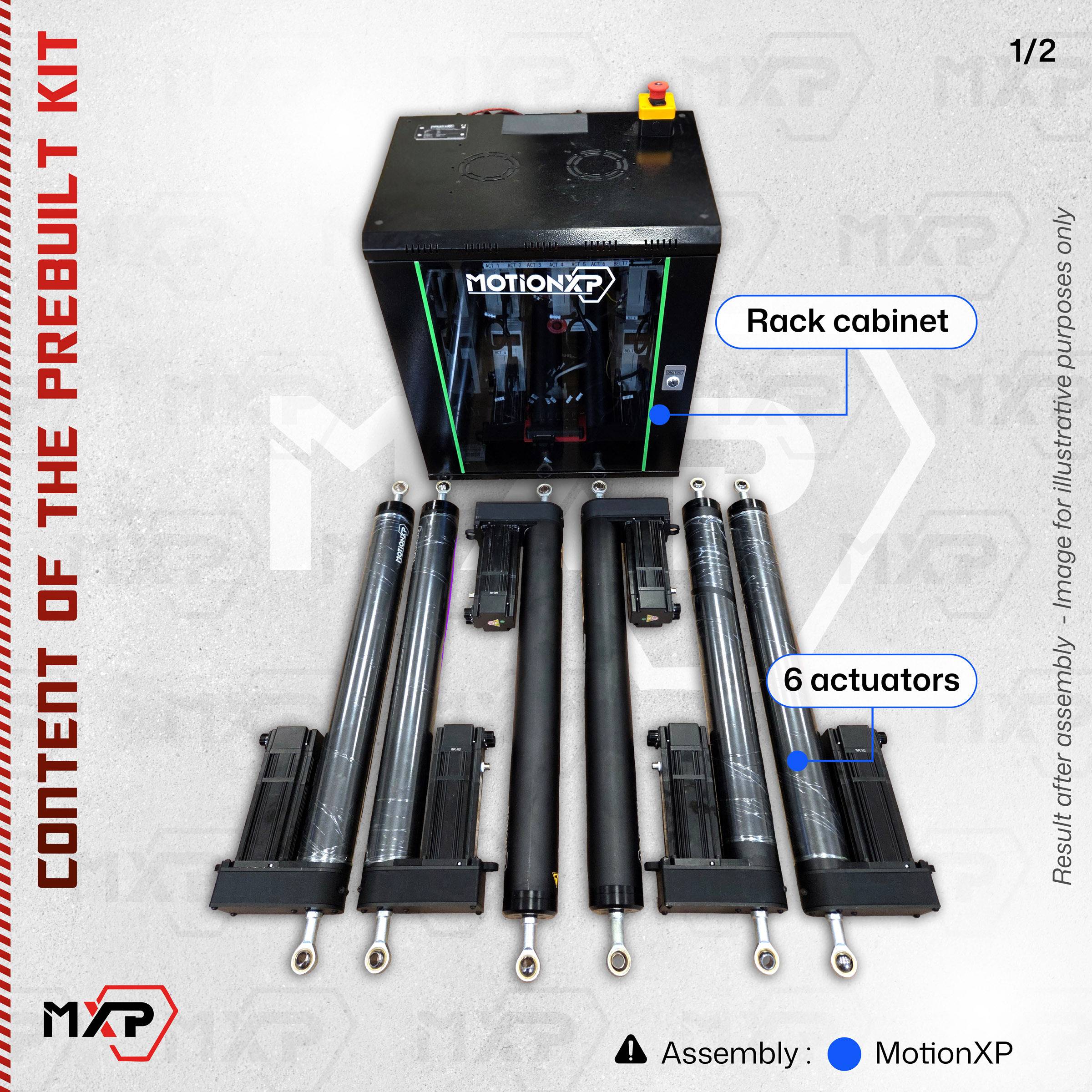

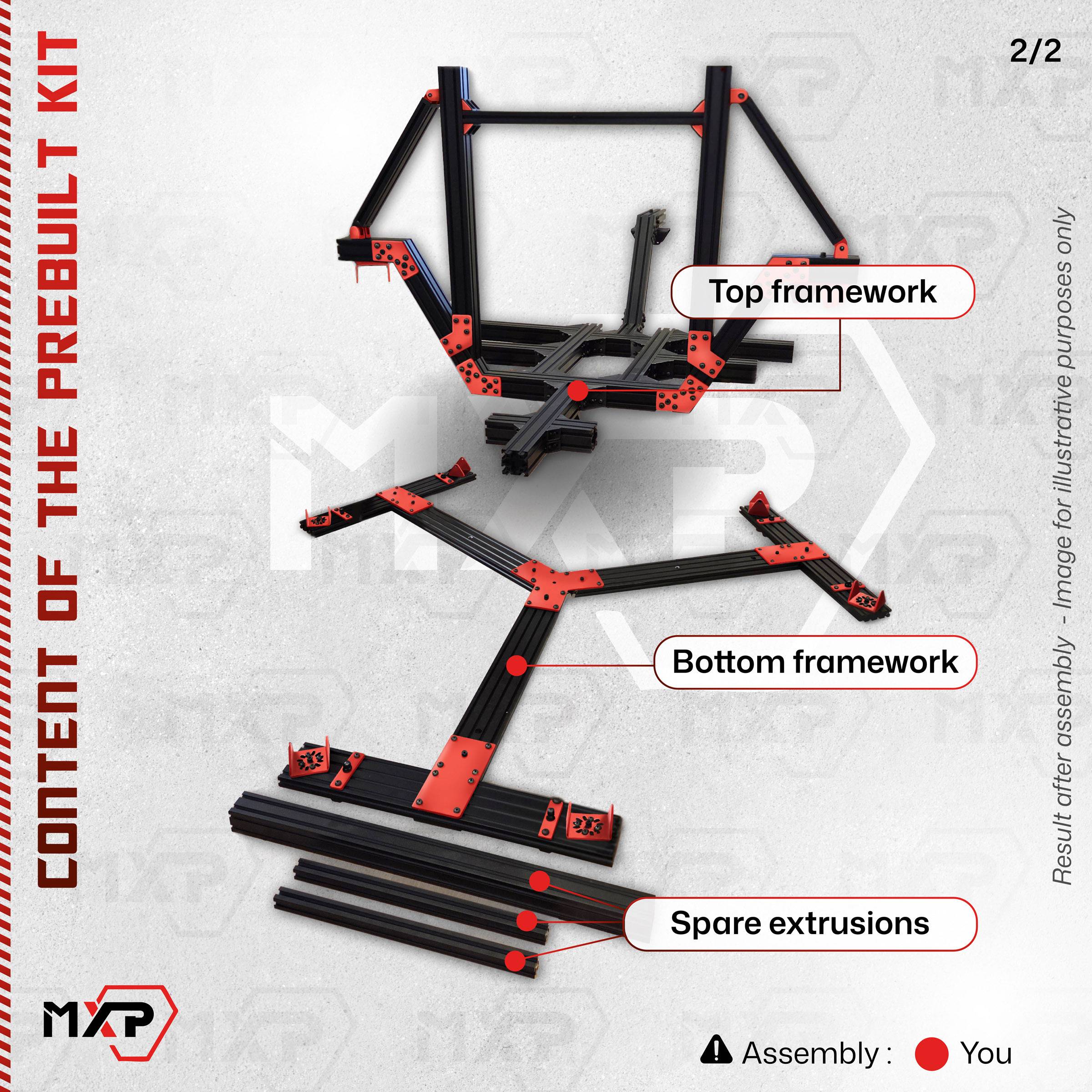

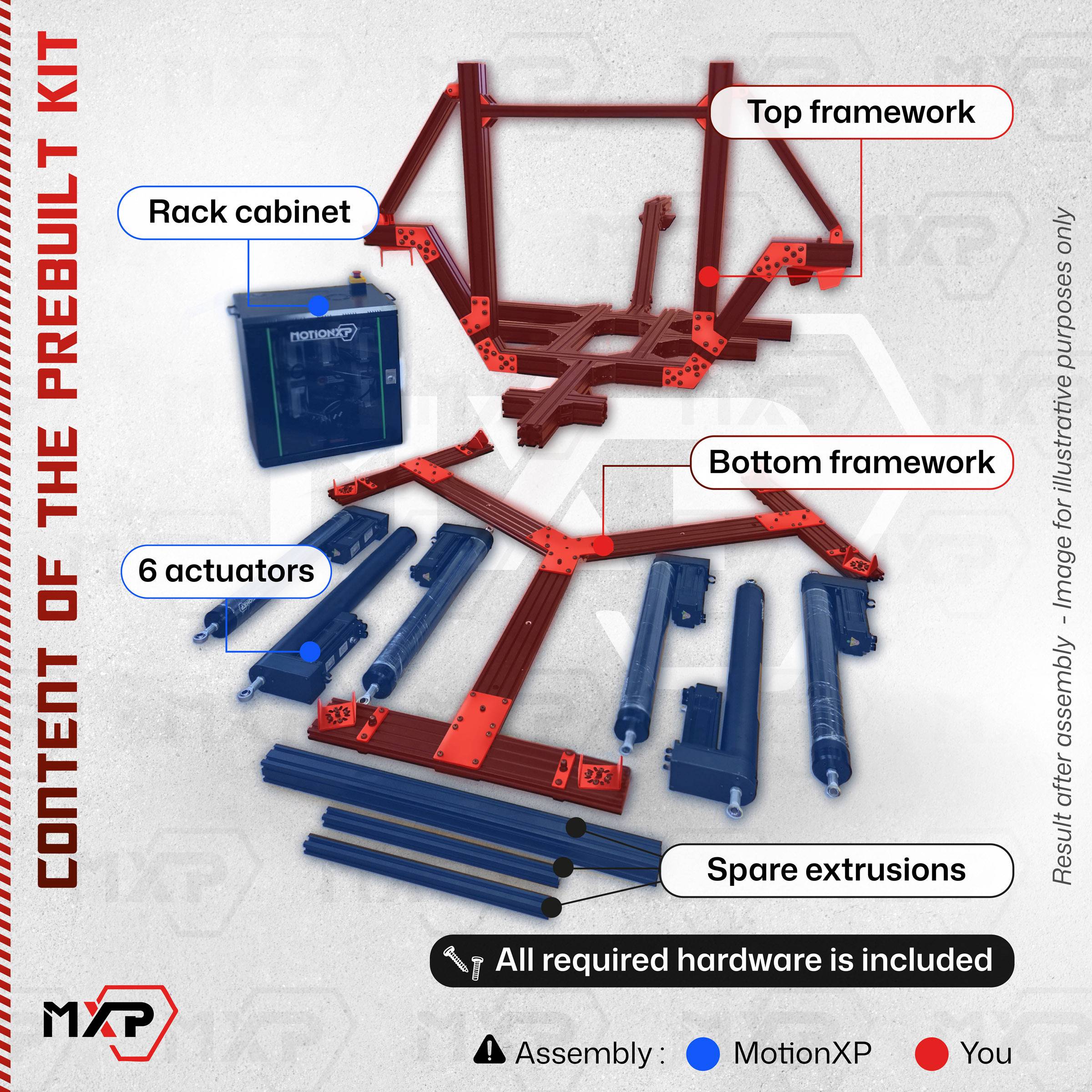

Pre-built

Get started fast with pre-built actuators and electric box. You only have to assemble the framework.

Starting at

€14,500.00excl. tax
& shipping *

Configure→

Assembly

Price

Contents

Options

Silver, Black, Belt Tensioner, Wind Simulator, Pedal reinforcement plate, CNC Platform, Spare Motion4Sim Controller, Spare Full Actuator Pre-Built (with motor), Thrustmaster AVA Base bracket right, Thrustmaster AVA Base bracket center, Thrustmaster Warthog base bracket right, Thrustmaster Warthog base bracket center, Thrustmaster Warthog Throttle bracket left, PRO license (contact us)

Turnkey

Let us customise and install your simulator to start playing right away.

On request

Contact us

Assembly

Price

* Shipping within EU starting at: 450,00 euro / UK, US & CA: 600,00 euro. Please contact us for shipping to other destinations.

Explore the Prime's features and specs

Capabilities

Stroke of actuators
620
MM

Total heave
725
MM

Max. roll
32
°

Max. pitch
35
°

Max. sway
450
MM

Max. surge
500
MM

Product may appear different from these images due to upgrades

Experiences

Having used the Prime model for over a year, its enormous range of motion allows me to run my haptic feedback lab efficiently. The user community responds promptly to every question. True enthusiasts!
BoldHelveticaPro
The experience meets the expectations of even the most demanding testers, from aviation enthusiasts to real pilots
VR AventuresPro
Thank you, for developing this motion platform out of passion. This simulator brings a smile to all my clients, from 10 to 73 years old.
ArcadiaXPPro
MotionXP designed custom actuators capable of moving at 800 mm/s with sufficient stroke. Once assembled into a six-actuator system forming a Stewart platform, they can accurately reproduce the complex movements of a floating wind turbine
ForWindPro
I highly recommend MotionXP to all professionals looking to equip themselves with high-end simulators and benefit from serious and professional support
SIM VR XPPro
The Prime allows us to seamlessly develop everything we had planned for our research project, but it also enables us to envision the future with numerous new applications designed for our clients, all built around this platform.
EktacomPro
"Oh mon dieu !"
@Pierre Berge-Cia [Tech&Co]
↗
Great sensations and no motion sickness
@Christophe [Laval Virtual]
After considering my experience and the flexibility of the platform, I have tried to think of ways I can convince my partner that I need one, that we have enough space for one, and that of course, we can afford it.
@Jordan Williams [FSElite]
↗
It didn't take long take to engage myself to this project after I evaluated the cost and performance, which is by far the best for a home simulator. A lot of love and effort went into this project, and they support like no other. Love it
@chrisprelot
I have been looking for a long time for my own 6DOF simulator, but this is the first affordable one that meets all expectations. Service of MotionXP is more than one can imagine, with regular updates and further improvements.
@letsgo9
Sim builder and PPL pilot tries the Prime
@jack071177

Specifications

General

Payload

180 kg

Weight

180 / 360 kg [without and with counterweights]

Power

600W [1kW peaks]

Voltage

230V [110V optional]

Heave

+350mm, -375mm, 833mm/s

Roll

±32°, 150°/s

Surge

±500mm, 833mm/s

Yaw

±40°, 150°/s

Sway

±450mm, 833mm/s

Pitch

+35° / -32°, 150°/s

Dimensions

Footprint (LxW)

1900 x 2160 mm

Min. required height

2230 mm

Compatibility

Servo controllers

Motion4Sim

Software

FlyPT Mover, DR Sim Manager

Games

All games supported by Flypt Mover, including: Assetto Corsa, Assetto Corsa Competizione, DCS World, DiRT Rally 2, Truck Simulator 2 and American Truck Simulator, F1 2020, Flight Simulator 2020, iRacing, Automobilista 2. At this time an expanding selection of games with Dr Sim Manager is supported.

Peripherals

By customising the framework you can mount almost all known peripherals (not included).

Requirements

Peripherals

To use the simulator you would need to add your own peripherals, for example: joysticks, wheel bases and pedals. Peripherals are not included.

Display(s)

The simulator requires a display device which could be a head mounted display (VR) or monitor. An extra monitor beside the simulator is recommended to make configurations. Displays are not included.

PC

For the simulator you need a Windows 10 or 11 PC which is capable of driving your entire setup. A PC is not included.

Prime
